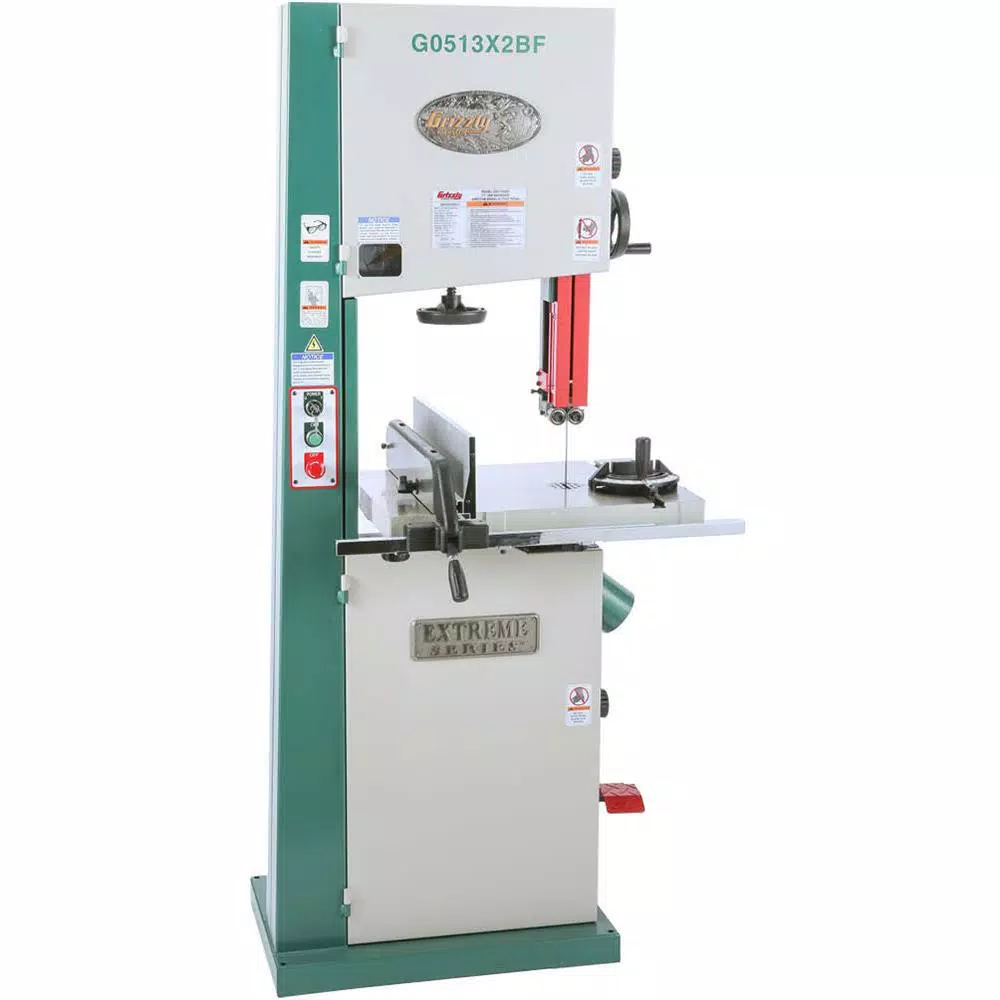

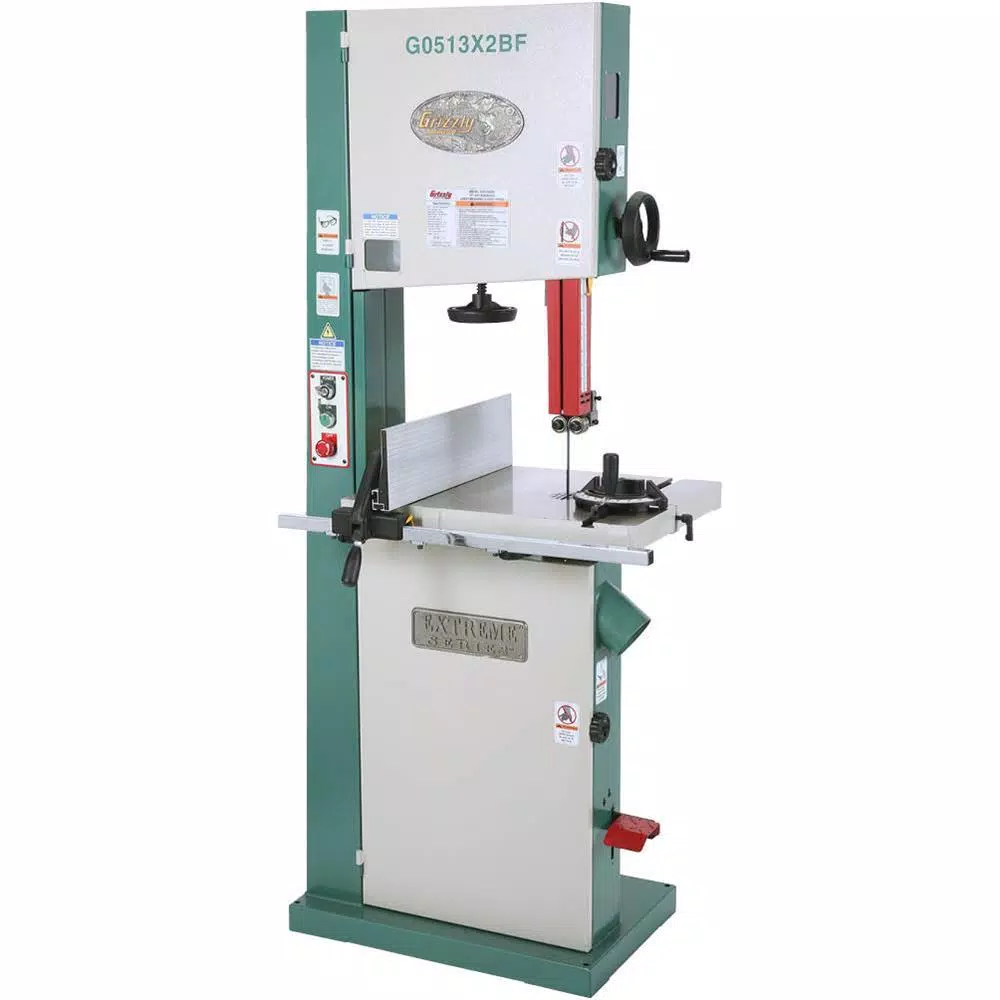

Grizzly Industrial 17″ 2 HP Extreme-Series Bandsaw with Cast-Iron Trunnion & Foot Brake Micro-Switch
$1,815.16
Introduce a versatile device to your workstation with the choice of this extra ordinary Grizzly Industrial 2-ExtremeSeries Bandsaw with CastIron Trunnion Foot Brake MicroSwitch. Base is machined to hold the 3 bit set.
In stock
Grizzly is proud to offer these full-featured Extreme 17 in. Heavy-duty Bandsaws with cast iron wheels. The 2 HP motor powers through wood at a maximum 12 in. cutting capacity and the 16-1/4 in. throat is plenty for most applications. Features like the deluxe fence, extra-wide cast iron table, heavy-duty miter gauge, dual 4 in. dust ports, micro-adjusting geared table, and double ball-bearing blade guides are usually found on machines costing much more. And, the ISO 9001 factory designation assures high quality standards. The motor brake on the G0513X2BF stops the blade in 3 seconds and ensures greater safety and faster production times. The foot pedal activates the electronic motor brake and the manual brake so that you can have both of your hands on the workpiece when bringing the blade to a stop.
- Motor: 2 HP, 220-Volt, single-phase, TEFC capacitor-start induction, 60 Hz, 1720 RPM, 8.7 Amp
- Table size: 23-5/8 in. x 17-1/4 in. x 1-1/2 in. thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 16-1/4 in. left of blade
- Maximum cutting height: 12 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
| Weight | 357 lbs |
|---|---|
| Dimensions | 21.00 × 31.00 × 81.00 in |
| Amperage (amps) | 10 |
| Maximum Speed (rpm) | 1720 |
| Voltage (volts) | 220 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 17.25 |
| Table Tilt Right Max (degrees) | 45 |
| Table Tilt Left Max (degrees) | 5 |
| Table Length (in.) | 23.052 |
| Power Tool Features | Lockout Power Switch, No Tool Blade Change, Quick-Release Tension, Stand Included |
| Portability | Stationary |
| PT Horsepower (Hp) | 2 |
| Model | G0513X2BF |
| Minimum Blade Width | 1/8 |
| Minimum Blade Length | 130 |
| Maximum Blade Width | 1 |
| Band Saw Type | Vertical |
| Maximum Blade Length | 131-1/2 |
| Included Accessories | Stand |
| Dust Port Size (In.) | 4 |
| Dust Collection Method | 4 in. Dust Port |
| Cutting Capacity Width / Depth Of Throat(In.) | 16-1/4 |
| Cutting Capacity Height / Height under Guide (In.) | 12 |
| Cuts Through | Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Multi-Colored |
| Bench & Stationary Tool Type | Band Saw |
| Work Table Surface | 23.052 in. x 17.25 in. |
