Hilti TE-YX 9/16 in. x 22 in. Carbide Head SDS Max Imperial Hammer Drill Bit
$176.34
The Hilti TE-YX 9/16 in. x 14 in. Carbide Hammer Drill Bit features a solid metal carbide head for durability and less jamming. It comes with double-helical fluting and ductile core. The TE-YX connection head is apt for use with a variety of tools.
In stock
Description
With the introduction of the new series of more powerful Hilti combo hammers, the Hilti TE-YX (SDS-MAX) carbide drill bit line has been upgraded to provide maximum performance. Its innovative design consists of a full carbide head to drill faster in rebar with less jamming thanks to its multi-cutter construction. The bit helix is never machined, offering a lighter weight and more body strength. Its the only SDS-Max bits offering a warranty, meaning it can be replaced as long as the wear mark is visible.

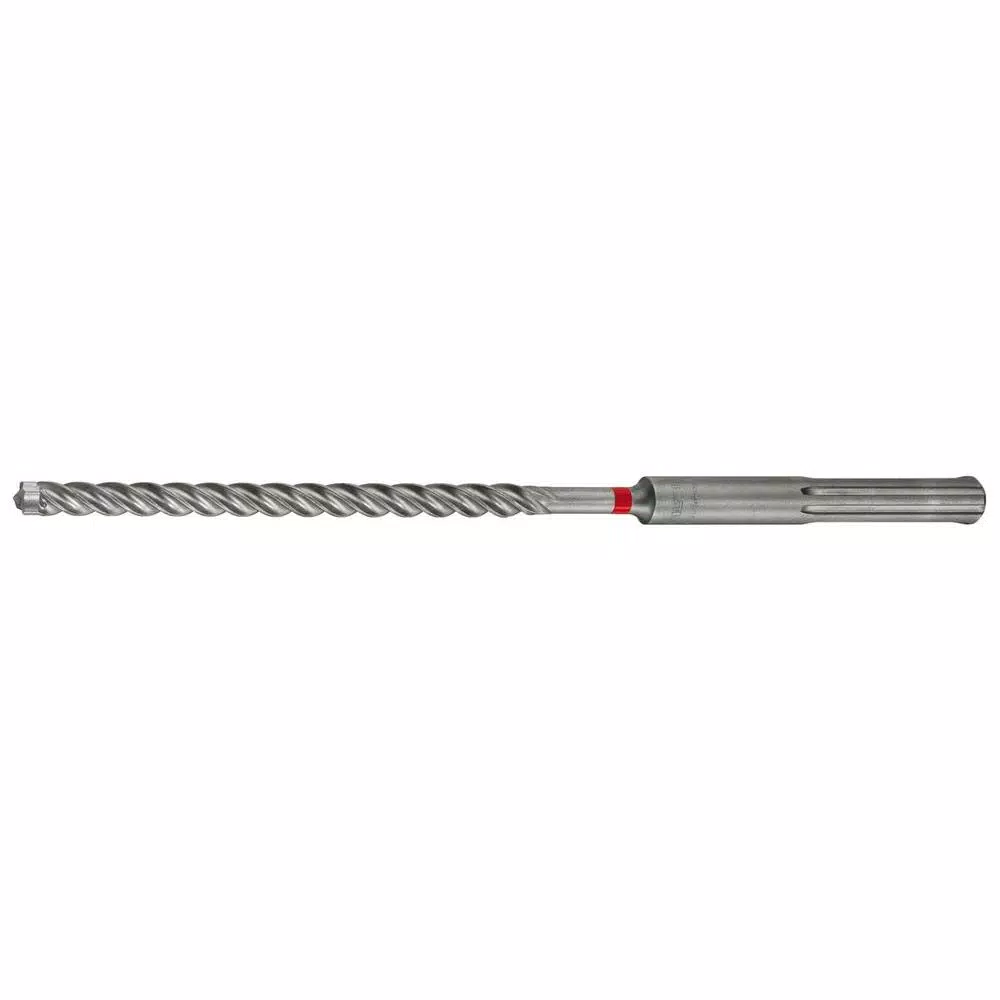

- Package includes 1 TE-YX 9/16 in. x 22 in. SDS-Max imperial hammer drill bit
- Solid carbide head
- Heat-treated flute for less wear
- Double-helical fluting for low wear and fast dust removal
- Easier to read longitudinal markings
- Working length: 15-31/32 in.
- Head shape: multi-cutter
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 21.00 × 1.00 × 1.00 in |
| Assembled Depth (in.) | 22 in |
| Assembled Height (in.) | 9/16 in |
| Assembled Width (in.) | 9/16 in |
| Bit Diameter | 9/16 in |
| Bit Length (in.) | 22 |
| Bit Material | Carbide |
| Drill Bit Type | Hammer Drill Bit |
| Drill Bit Type(s) Included | Percussion Bit |
| Individual/Set | Individual |
| Material Application | Concrete |
| Model | 206512 |
| Self-Feeding | No |
| Shank Diameter | 16 mm |
| Shank Style | SDS Max |
| Tools Product Type | Power Tool |
