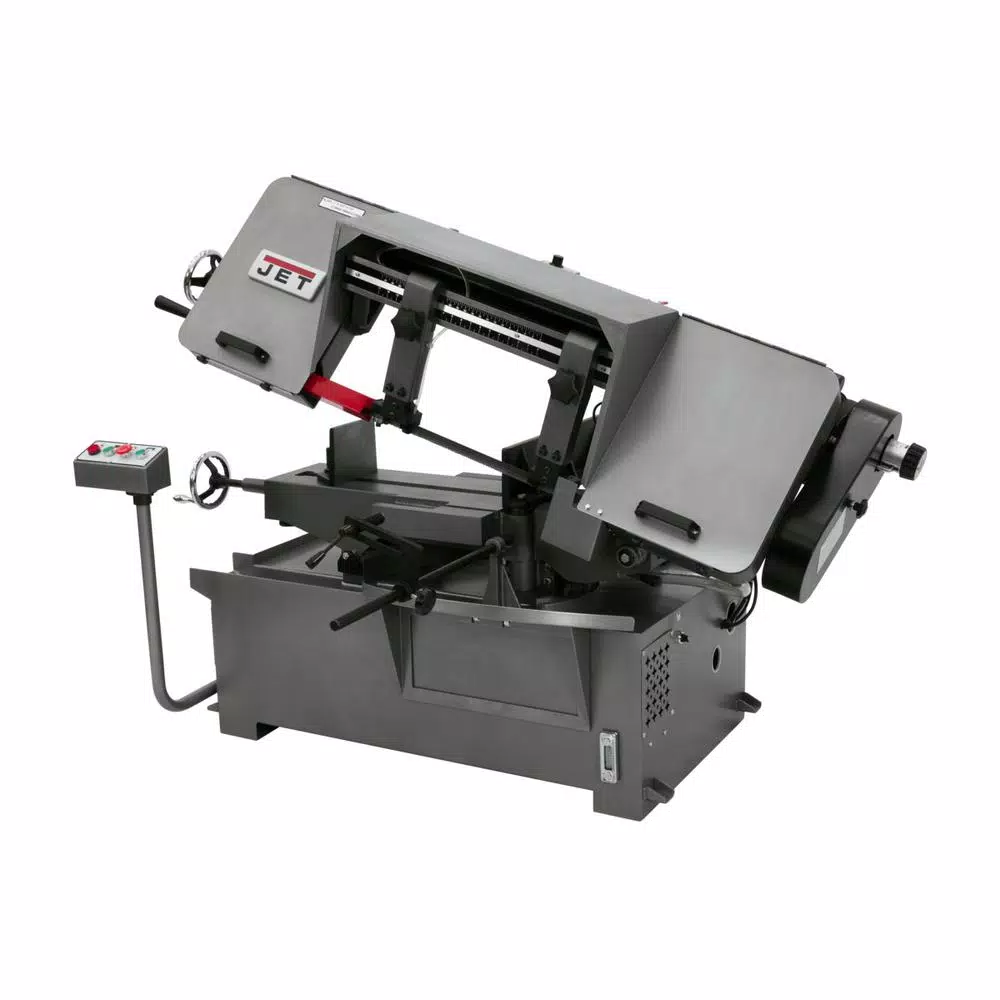

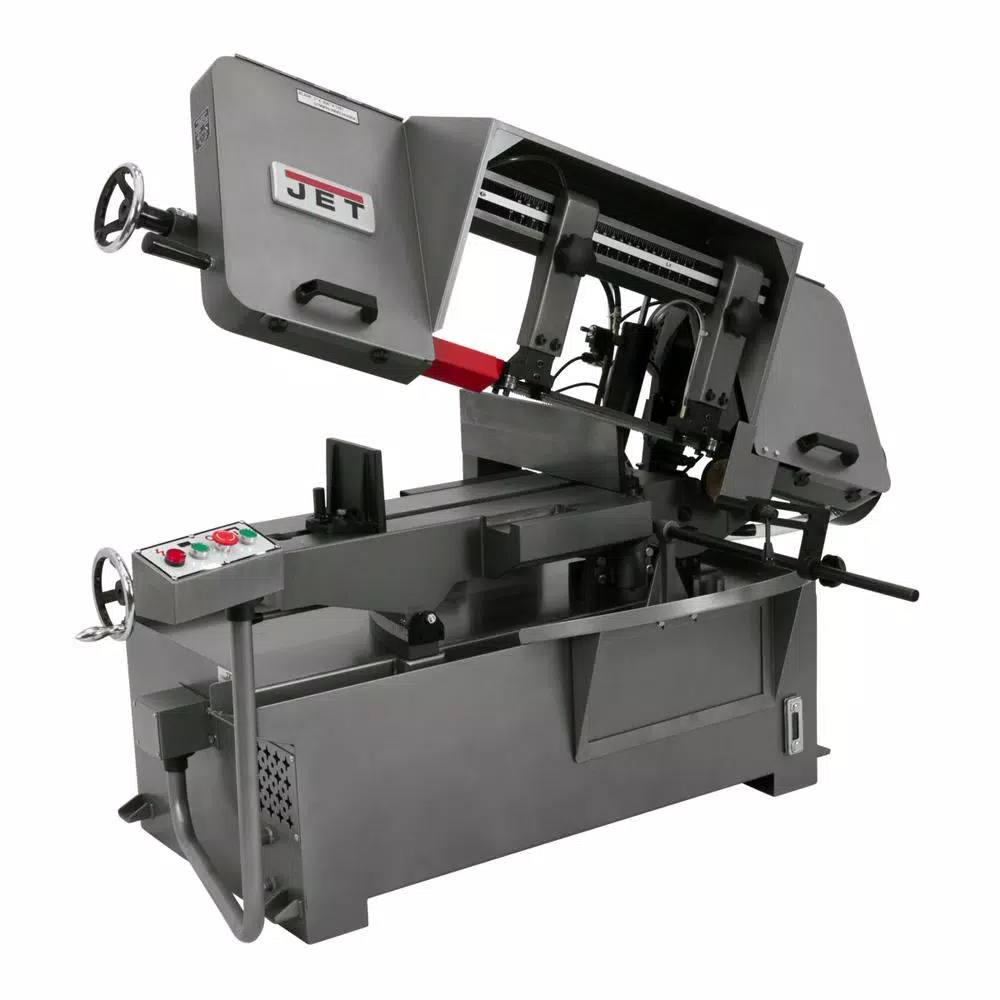

Jet 10 in. x 16 in. 1-1/2 HP, 230-Volt/460-Volt Metalworking Horizontal Mitering Bandsaw 3Ph
$7,499.00
Finish your all toughest works easily with the selection of this Jet Metalworking Horizontal Mitering Bandsaw. Forward and reverse switch.
In stock
Description
Jet Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading 2-year warranty, Jet Mitering Bandsaws are built to last and deliver precision results.

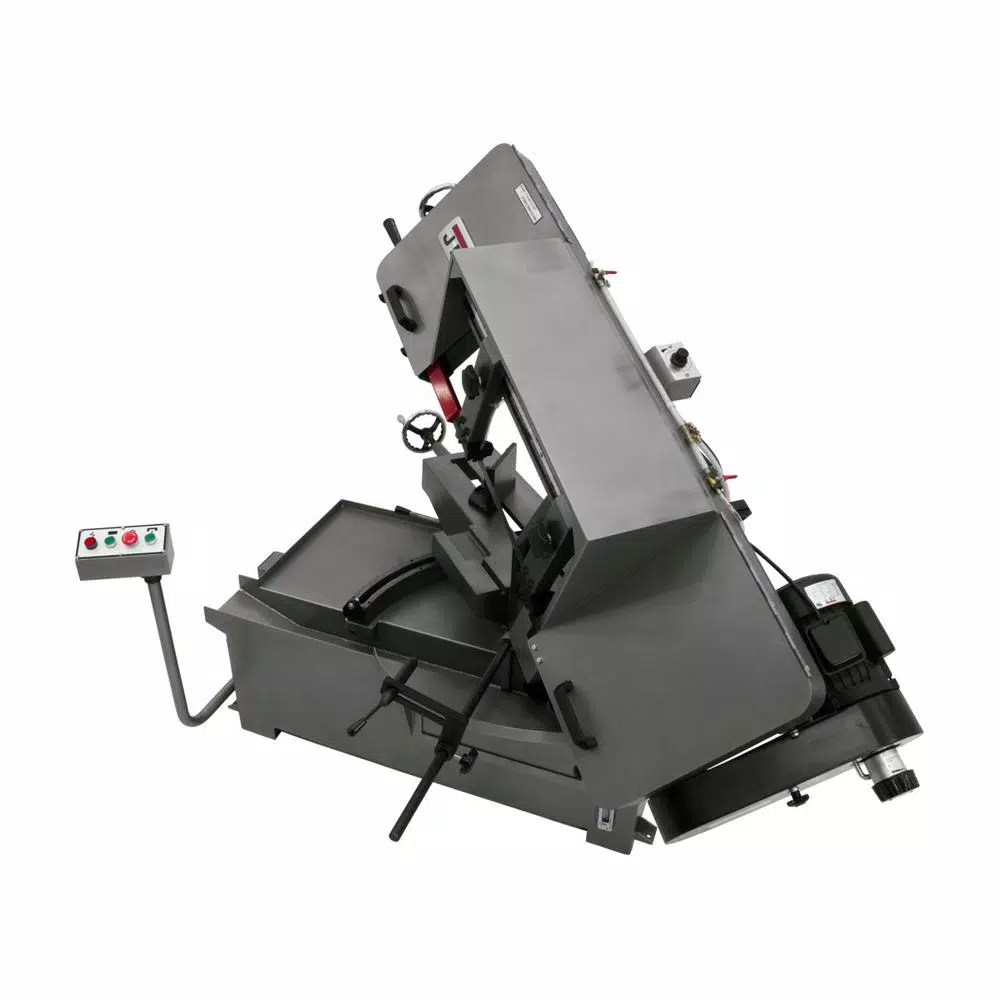

- Mitering head swivels to cut any angle 0° – 45° while the work piece remains secured
- Swing away control panel houses major saw controls
- Variable speed drive system allows the operator to easily fine tune the blade speed
- Adjustable blade guide with 6 contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
- Blade rides on 2 load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
- Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
- Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
- Cast iron blade wheels
- Coolant system
- Adjustable material stop
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 1125 lbs |
|---|---|
| Dimensions | 76.00 × 30.00 × 48.00 in |
| Amperage (amps) | 0 |
| Maximum Speed (rpm) | 350 |
| Voltage (volts) | 230 |
| Tools Product Type | Power Tool |
| Table-Top Material | Cast-Iron |
| Table Width (in.) | 0 |
| Table Tilt Right Max (degrees) | 0 |
| Table Tilt Left Max (degrees) | 0 |
| Table Length (in.) | 0 |
| Power Tool Features | Variable Speed |
| Portability | Stationary |
| PT Horsepower (Hp) | 2 |
| Model | 414475 |
| Minimum Blade Width | 1 |
| Minimum Blade Length | 135 |
| Maximum Blade Width | 1 |
| Band Saw Type | Horizontal |
| Maximum Blade Length | 135 |
| Included Accessories | Blade |
| Dust Port Size (In.) | 0 |
| Dust Collection Method | None |
| Cutting Capacity Width / Depth Of Throat(In.) | 16 |
| Cutting Capacity Height / Height under Guide (In.) | 10 |
| Cuts Through | Aluminum, Metal, Nylon, PVC, Plastic, Porcelain, Steel, Wood |
| Cordless/ Corded | Corded |
| Cord Length (ft.) | 0 |
| Construction Material | Steel |
| Condition | New |
| Color Family | Gray |
| Bench & Stationary Tool Type | Band Saw |
| Work Table Surface | 0 in. x 0 in. |
