Description
Milwaukee’s 1-Piece carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from The 1-piece core bit. The 1-piece core bits are available in SDS-MAX or Spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The 1-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
- Asymmetrical and alternating teeth for faster material pulverization
- Thick-wall core body for durability even in large hammers
- Centering tip to reduce bit walking and create exact spot drilling
- Remove centering bit with drift key 48-20-5497 (not included)
- Drilling depth 3 in.

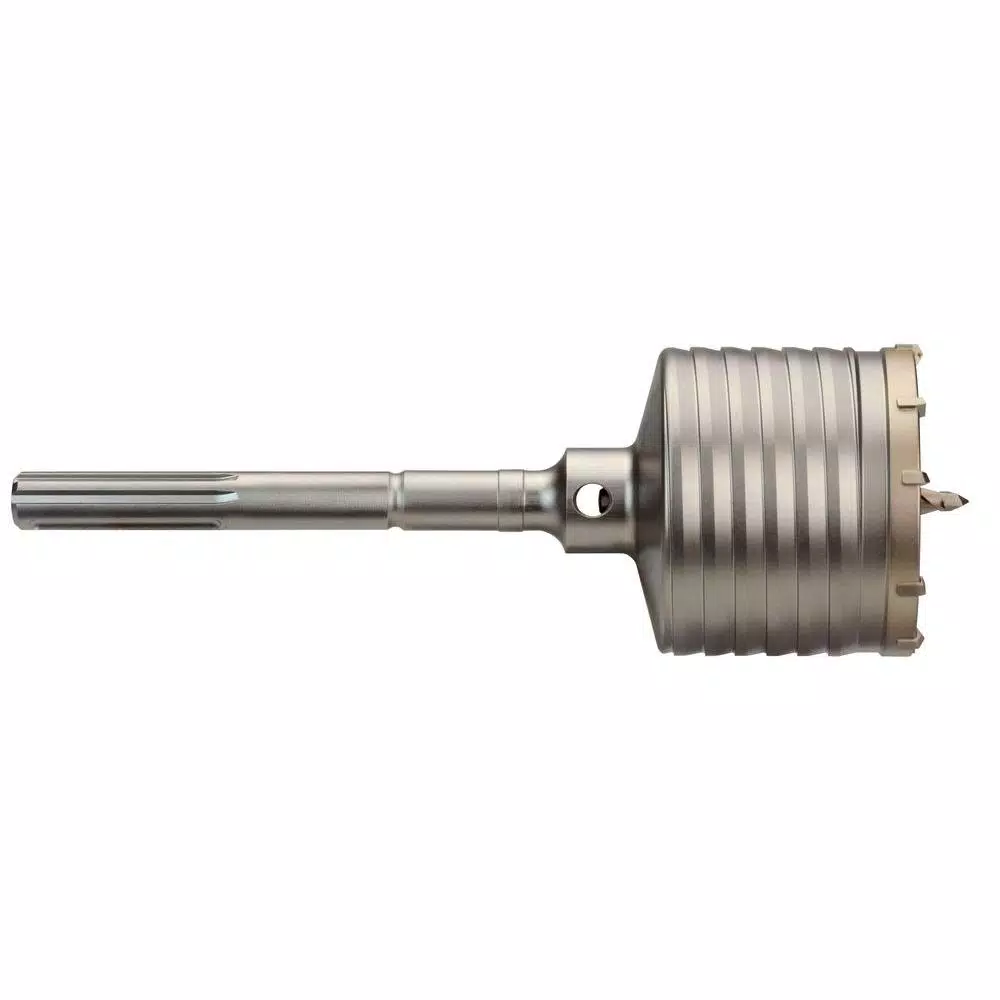

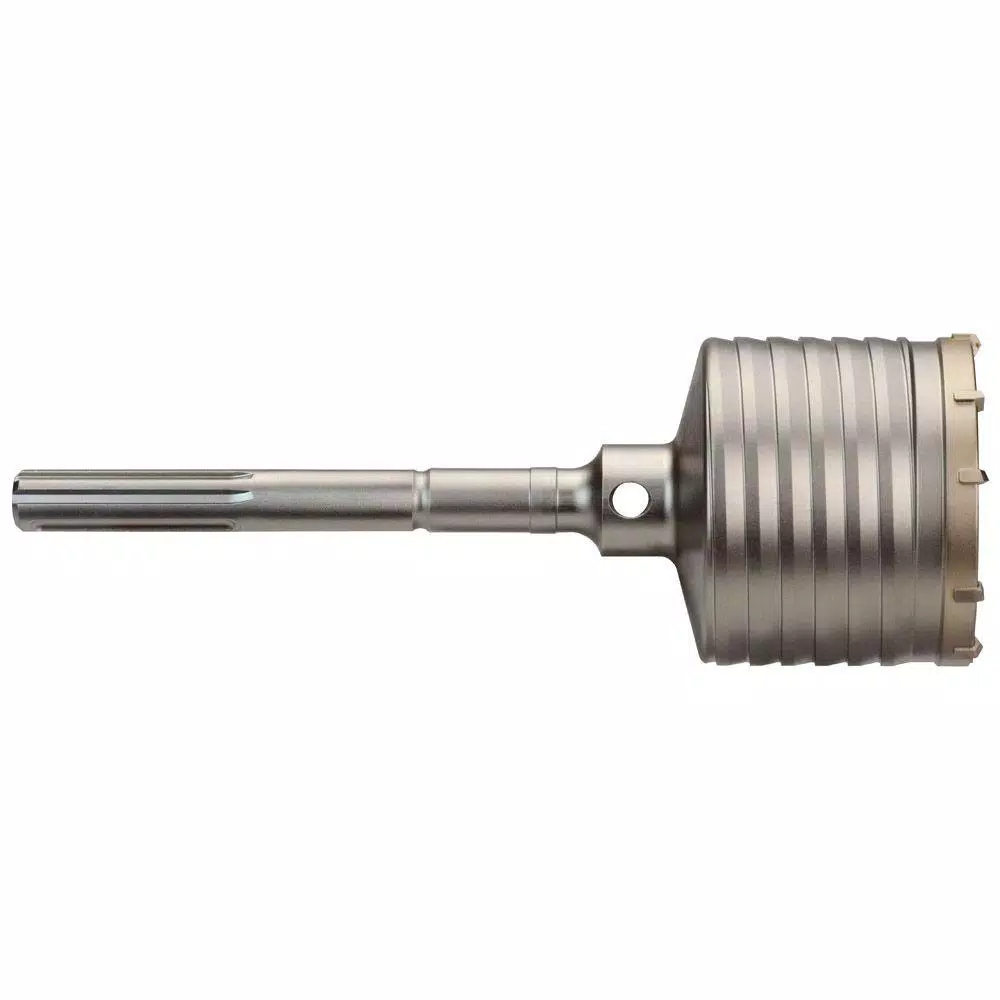

- Includes (1) 48-20-5436 Milwaukee 5 in. x 11-3/8 in. 1-piece SDS-MAX core bit
Additional information
| Weight | 5.65 lbs |
|---|---|
| Dimensions | 6.75 × 6.75 × 12.25 in |
| Assembled Depth (in.) | 6.75 in |
| Assembled Height (in.) | 12.25 in |
| Assembled Width (in.) | 6.75 in |
| Bit Diameter | 5 in |
| Bit Length (in.) | 11.375 |
| Bit Material | Carbide |
| Connection End Type | 1 1/4 in. – 7 in. |
| Drill Bit Type | Coring Bit |
| Drill Bit Type(s) Included | Coring Bit |
| Individual/Set | Individual |
| Material Application | Concrete |
| Model | 48-20-5436 |
| Self-Feeding | No |
| Shank Diameter | 3/4 in |
| Shank Style | SDS Max |
| Tools Product Type | Power Tool |
