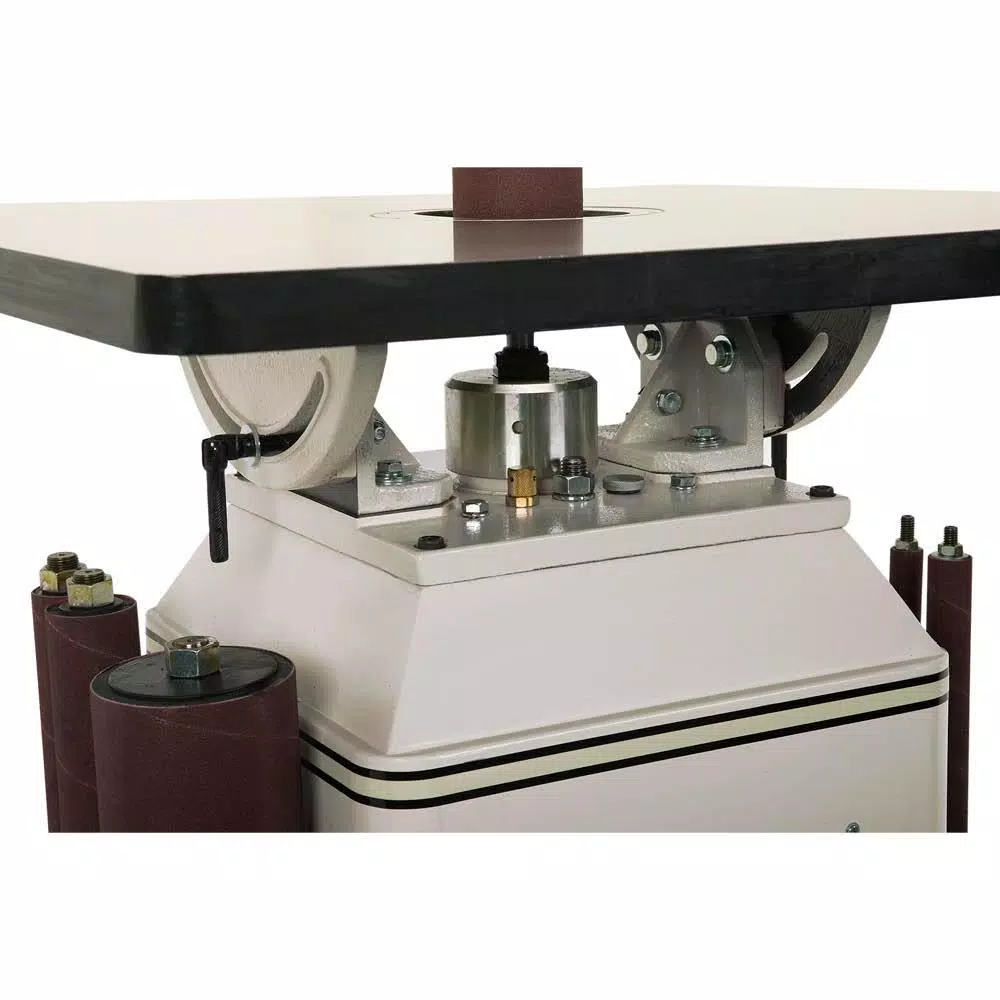

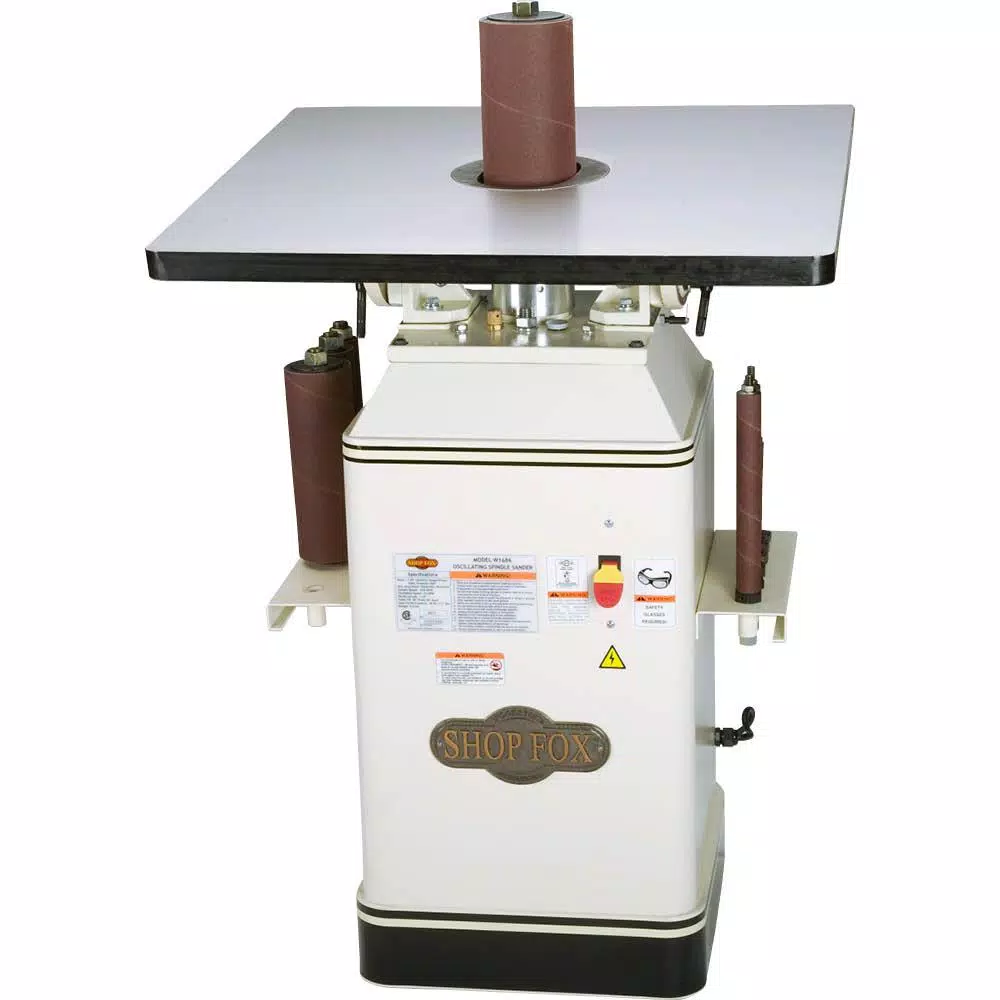

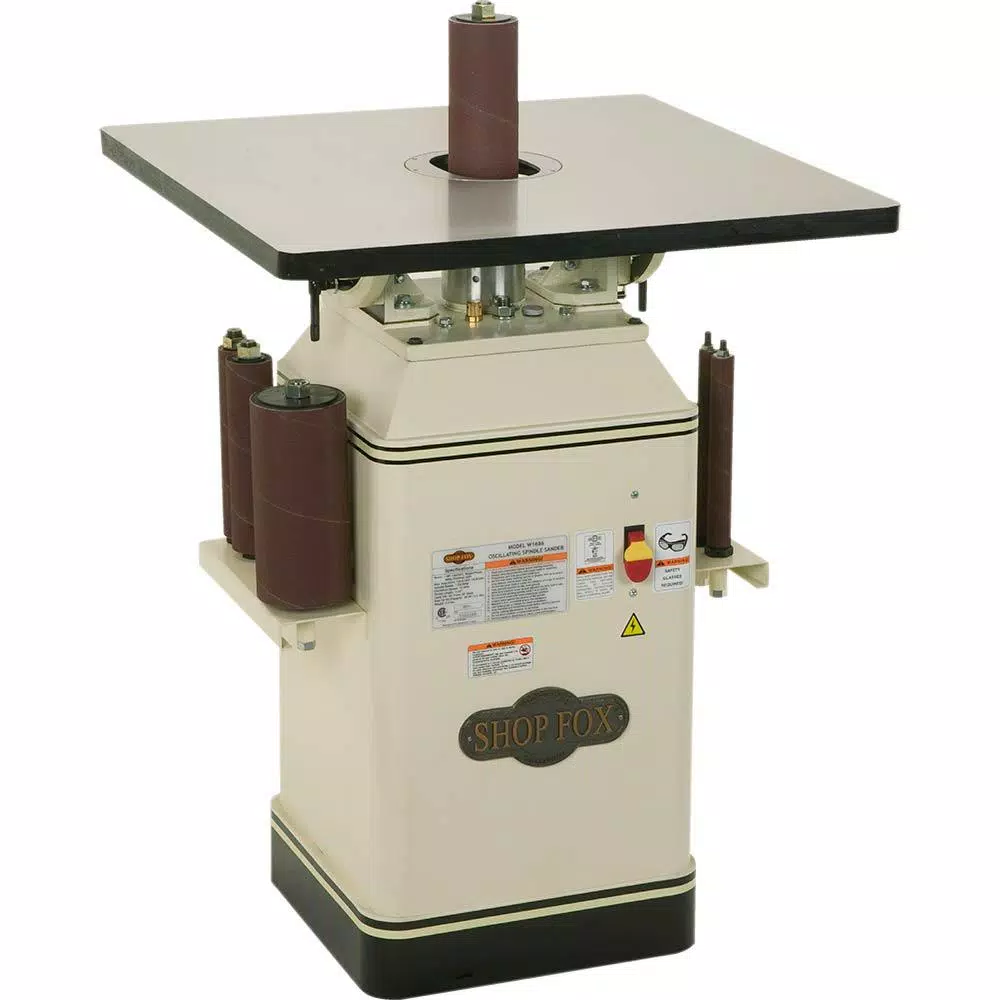

No expense has been spared to bring you this feature packed spindle sanding monster. With a whopping 25-1/4 in. x 25-1/4 in. precision-ground cast-iron table, no other machine comes close to Shop Fox in size and capacity. The heavy-duty trunnion assembly will effortlessly support your heaviest oversized workpieces and the 1 HP motor will gracefully sculpt the hardest woods. Built for everyone from the demanding shop boss to the amateur who has it all, the Shop Fox W1686 will without a doubt meet the highest of expectations. Certified to CSA and UL standards.

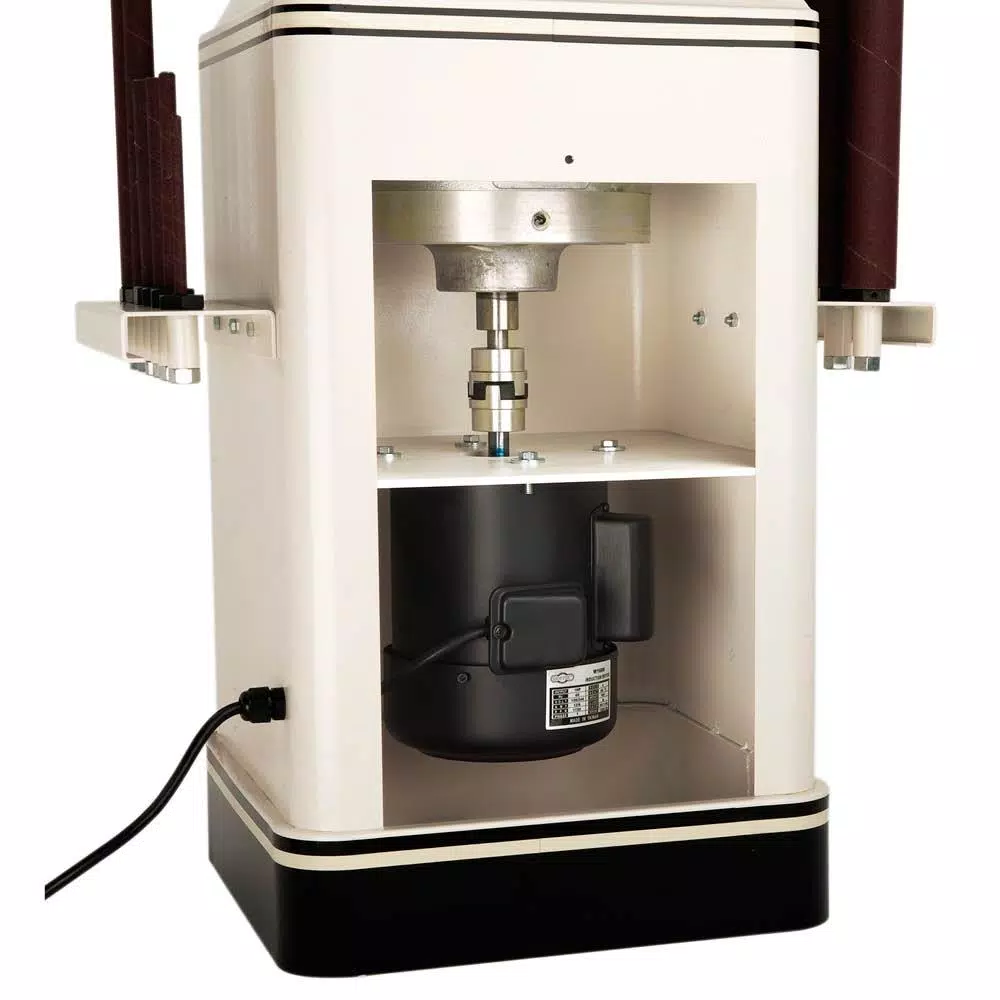

- Motor size: 1 HP, 120-Volt/240-Volt, pre-wired 120-Volt, 12 Amp/6 Amp, TEFC motor

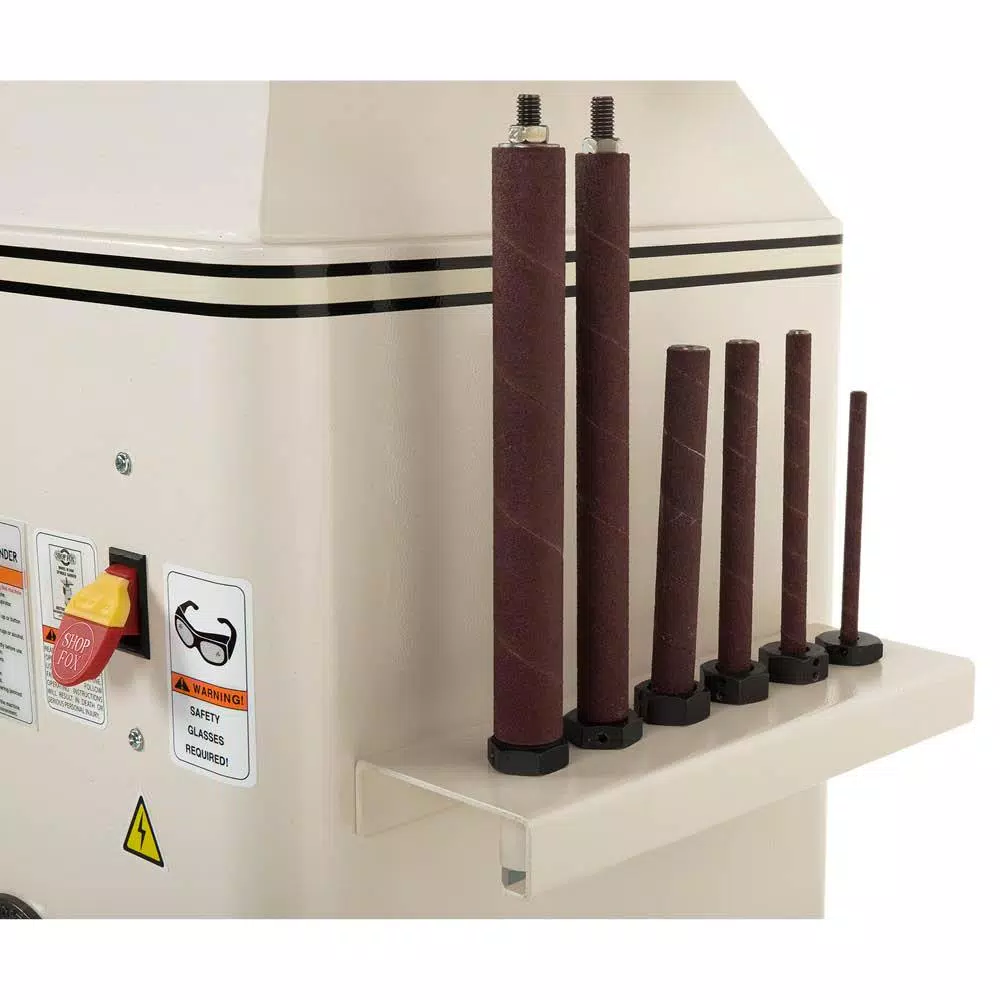

- 10 spindle sizes: 1/4 in. x 5 in., 3/8 in. x 6 in., 1/2 in. x 6 in., 5/8 in. x 6 in., 3/4 in. x 9 in., 1 in. x 9 in., 1-1/2 in. x 9 in., 2 in. x 9 in., 3 in. x 9 in., 4 in. x 9 in., tapered and threaded

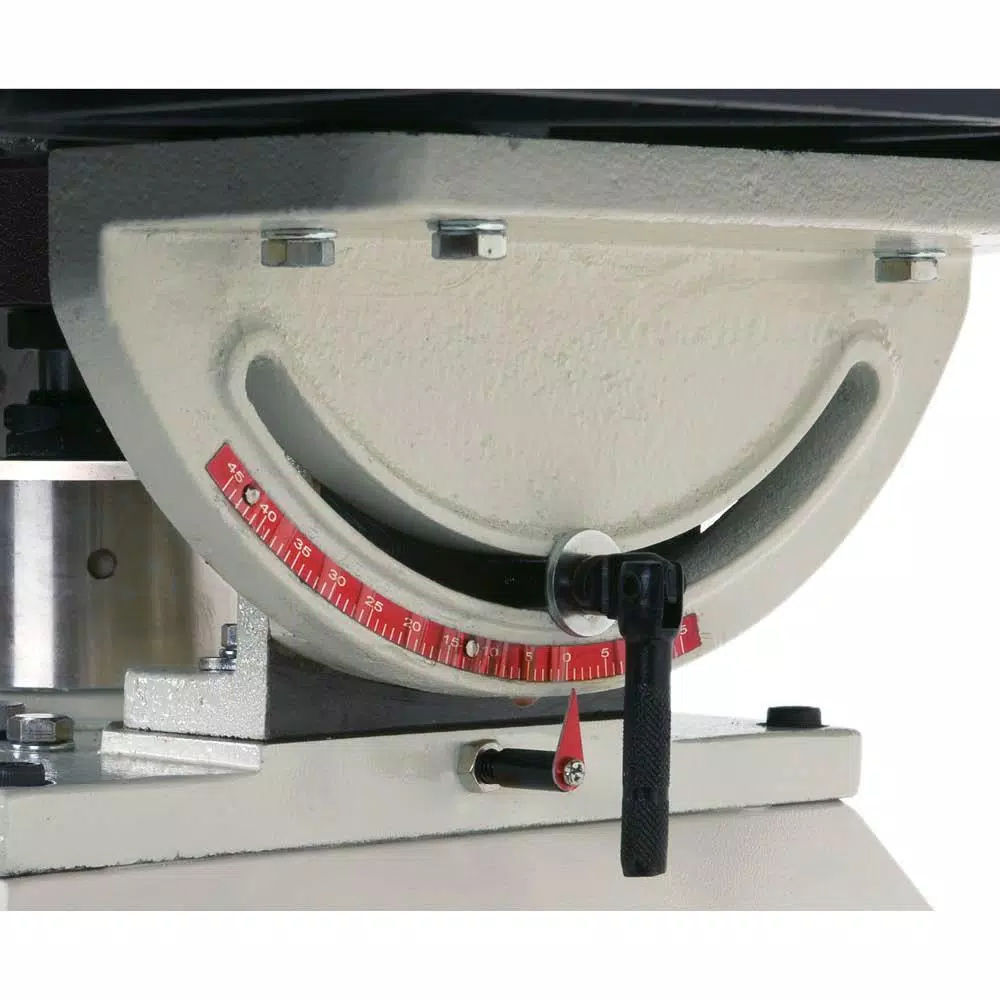

- Table tilt: 45° front and 20° back
- Table size: 25-1/4 in. L x 25-1/4 in. W
- Spindle speed: 1725 RPM
- Oscillation speed: 72 SPM
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
| Weight | 287 lbs |
|---|---|
| Dimensions | 26.00 × 28.00 × 37.00 in |
| Amperage (amps) | 12 |
| Reconditioned | No |
| Variable Speed | No |
| Tools Product Type | Power Tool |
| Table Width (in.) | 25.25 |
| Table Length (in.) | 25.25 |
| Spindle height (in.) | 5 |
| Spindle diameter (in.) | 0.25 |
| Power Tool Features | Lockout Power Switch, Stand Included |
| Bench & Stationary Tool Type | Spindle Sander |
| Portability | Stationary |
| PT Horsepower (Hp) | 1 |
| Model | W1686 |
| Dust collection type | Port |
| Cord Length (ft.) | 12 |
| Condition | New |
| Color Family | White |
| Voltage (volts) | 120 |
