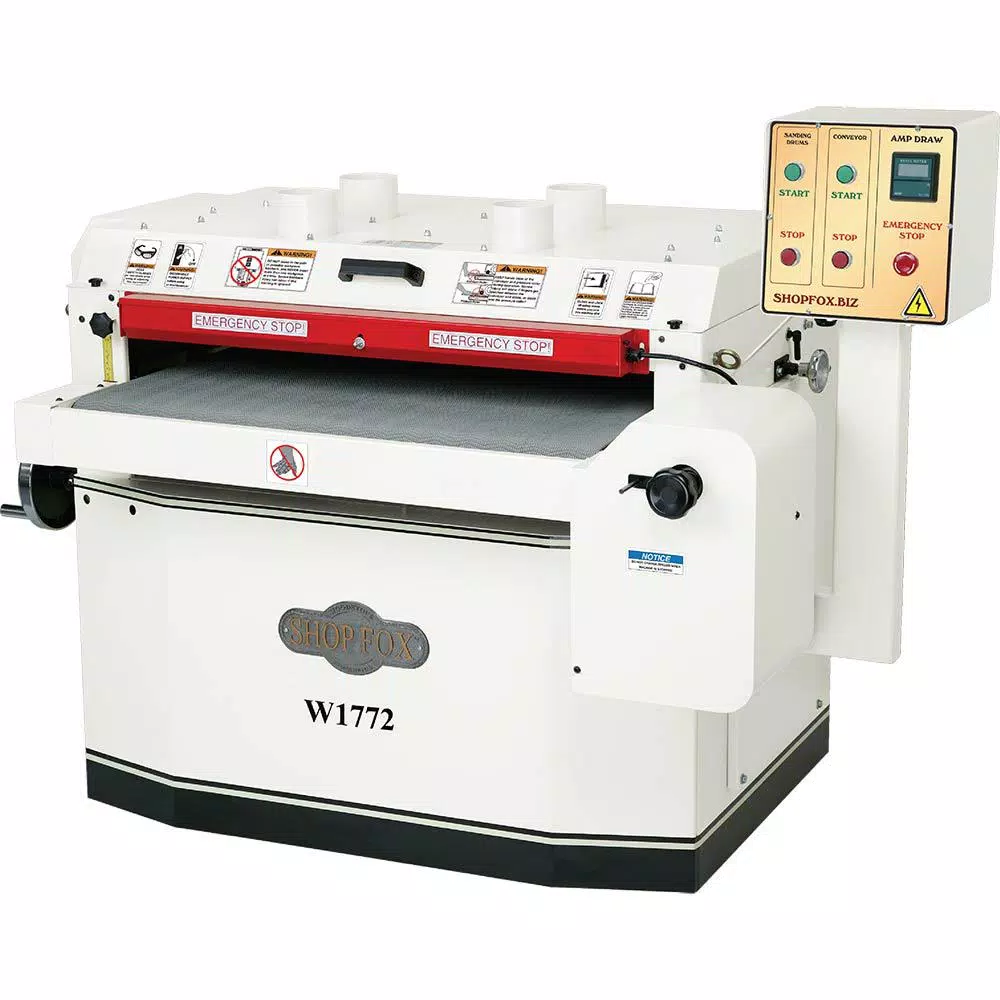

Shop Fox 37 in. 10 HP 240-Volt Drum Sander
$4,565.00
Acquire a convenient tool to complete your tough tasks at the jobsite with this Shop Fox Drum Sander.
In stock
Description

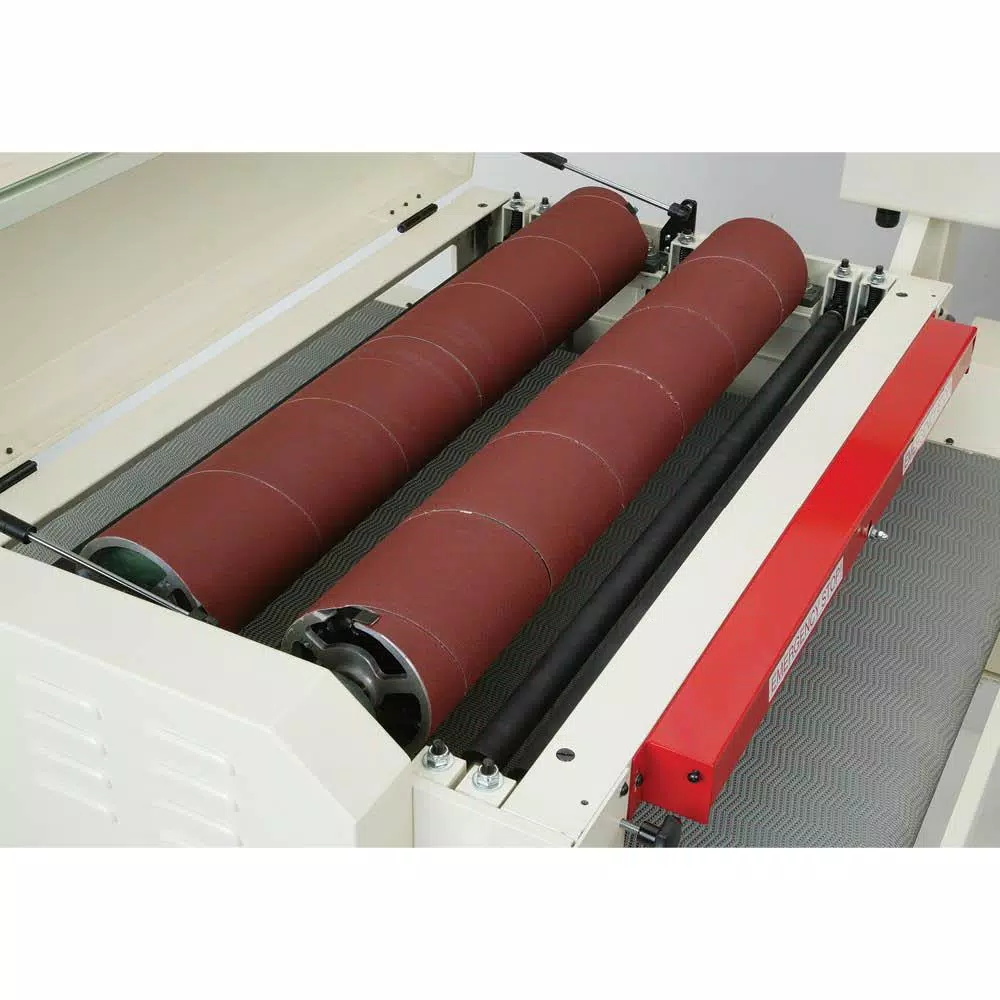

Designed for production shops, this 37 in. sander has what it takes to get those big jobs done fast. Sand boards and panels up to 4 in. T and 36-1/2 in. W, using 2 different abrasive grits in the same pass with the dual 6 in. sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4 in. dust ports and a 10 HP, 240-Volt, single-phase motor.
- Sanding drum motor: 10 HP, 240-Volt, single-phase, TEFC, 1725 RPM

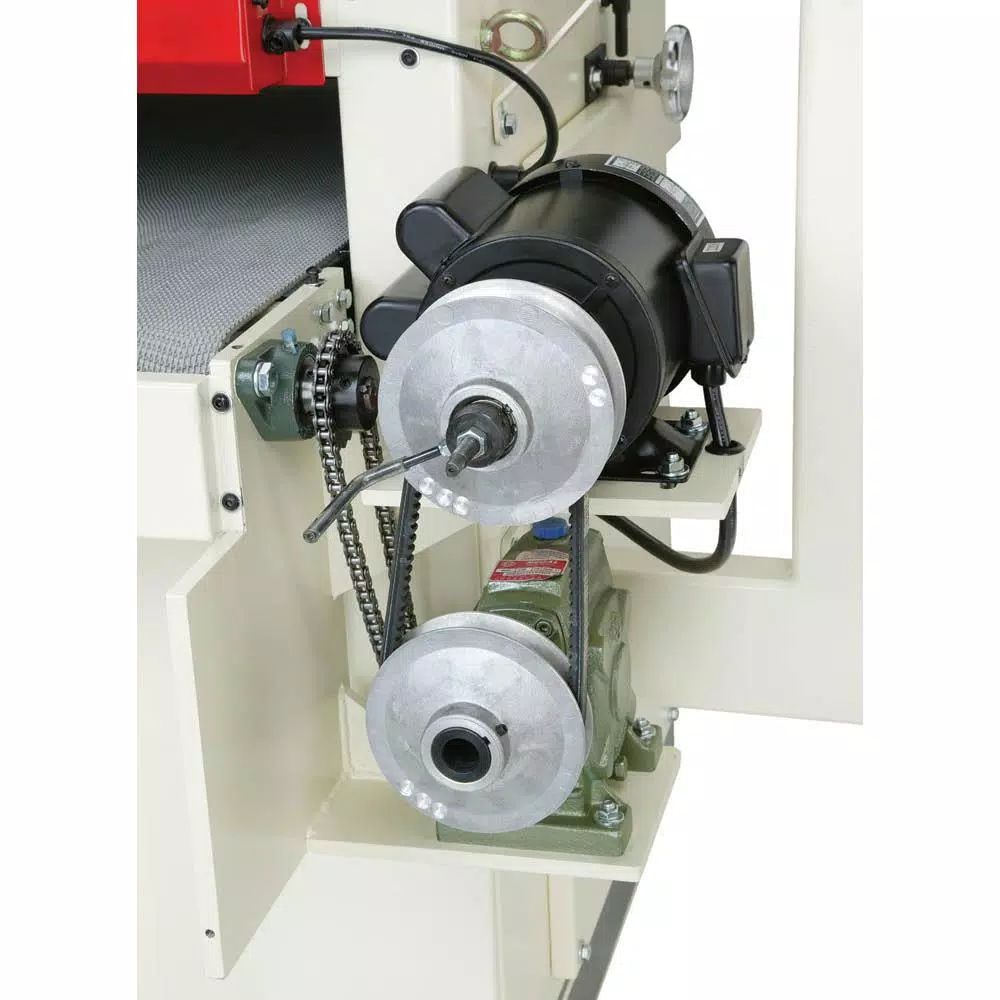

- Conveyor motor: 1/3 HP
- Drum surface speed: 2800 FPM
- Conveyor feed rate: variable, 618 FPM
- Sanding drums: 2 steel/rubber
- Dust ports: four 4 in.
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Additional information
| Weight | 1379 lbs |
|---|---|
| Dimensions | 56.25 × 61.25 × 43.00 in |
| Amperage (amps) | 46.7 A |
| Minimum feed height (in.) | 0.0625 |
| Variable Speed | Yes |
| Tools Product Type | Power Tool |
| Table Width (in.) | 36.5 |
| Table Length (in.) | 90.5 |
| Reconditioned | No |
| Power Tool Features | Variable Speed |
| Portability | Stationary |
| Model | W1772 |
| Maximum feed rate (ft./min.) | 18 |
| Belt length (in.) | 90.5 |
| Maximum feed height (in.) | 4 |
| Maximum Speed (rpm) | 1725 |
| Dust collection type | Port |
| Cord Length (ft.) | 9 |
| Condition | New |
| Color Family | White |
| Bench & Stationary Tool Type | Drum Sander |
| Belt width (in.) | 36.5 |
| Voltage (volts) | 220 |
