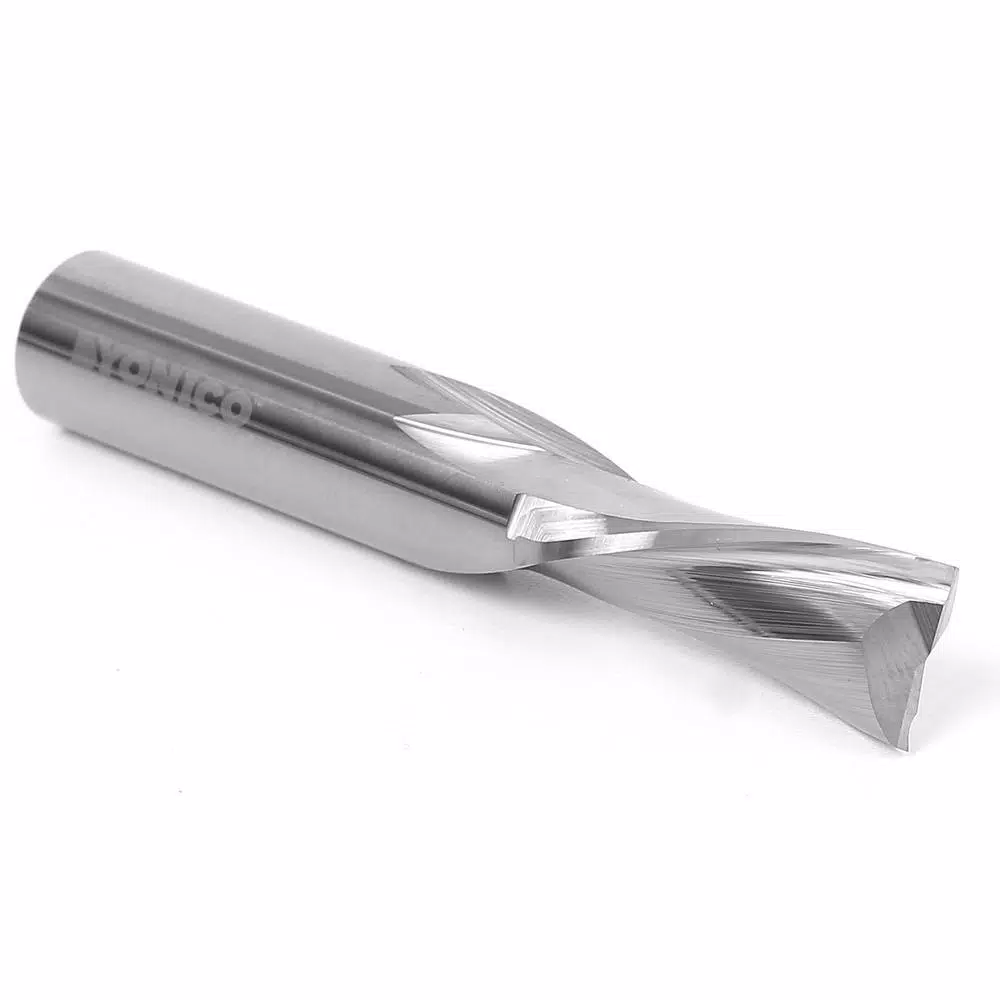

Yonico 1/2 in. Dia Solid Carbide 2-Flute Low Helix Downcut Spiral End Mill 1/2 in. Shank CNC Router Bit

Best for achieving smooth finish on hard plastics. Cutting Diameter: 1/2 in. Cutting Height: 1-1/4 in. Shank Diameter: 1/2 in. Overall Length: 3 in. Flutes: 2 Low Helix bits perform a more lateral movement with less upward or downward motion resulting in a smoother finish on single layer materials. These bits are a better choice for hard plastics such as acrylic and phenolic. Down cut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage. To get a smooth finish in hard plastics like acrylic with your CNC router, use a low helix spiral end mill. The modified cutter angle produces a better finish in plastics than standard spiral bits. Down cut bits pull chips downward, producing a clean top edge in your parts. Consequently, the chips accumulate in the cut path and should be removed to prevent bit breakage. Low helix bits require slower feed speeds than normal high helix bits.

• For CNC milling and routing on challenging materials where a clean top surface edge of material is required
• Premium C3 micro-grain solid tungsten carbide for a high-performance industrial quality tool
• For use on CNC, table mount and handheld routers
• Polished to a mirror finish from a solid carbide rod for precision and accuracy
• 2-flute design for MDF, softwoods or hardwoods
